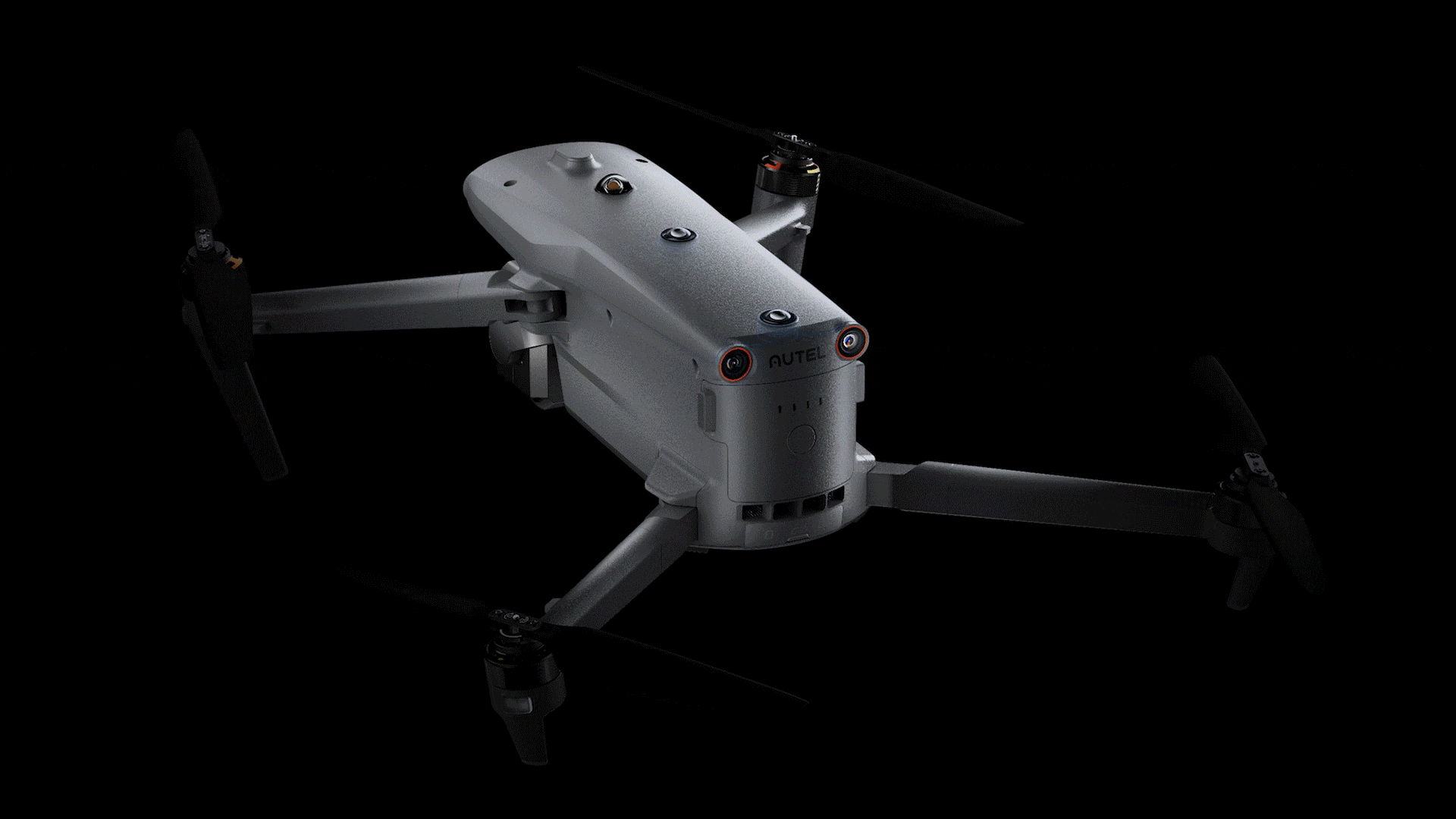

EVO Max Series

Reach New Frontiers

No Blind Spots

Anti Jam
Anti Interference

Reach New Frontiers

The EVO Max series brings you advanced autonomy. It assesses complex environments to create real-time 3D flight paths for unparalleled obstacle avoidance. Advanced sensors make flight in GPS unavailable areas possible and the incredible thermal and starlight cameras unlock new object identification and tracking scenarios. With a foldable, weather-resistant design, the series is as portable as it is capable.

720°
Obstacle Avoidance
Navigation In GPS
Denied Environments
A-Mesh
Networking
0.0001 LUX
Starlight Camera
Hot-Swappable
Batteries
12.4 Miles
Transmission Range
42 min
Max. Flight Time
IP43
Weather Rating *

*Learn more

Auto Path Finding

Autel's Autonomy Engine collects surrounding environmental data and plans 3D flight paths through complex environments such as mountains, forests, and buildings. Use cases include rapid 3D scene reconstruction, public safety overwatch, industrial inspection, and land surveying.
Navigation in GPS Denied Environment

Advanced sensors allow the EVO Max series to navigate within hardened structures, underground, or in environments without GPS.
Accurate Object Identification and Tracking

Based on Autel's AI recognition technology, the EVO Max series can automatically identify and lock onto different types of targets such as heat sources, moving people, or vehicles and achieve high-altitude tracking and data collection for law enforcement.

No Blind Spots

Ultimate Obstacle Avoidance

The EVO Max series is the only commercial drone that combines traditional binocular vision systems with millimeter wave radar technology. This allows the onboard EBA Autonomy Engine to perceive objects down to 0.5 inches, eliminating blind spots and enabling operation in low light or rainy conditions.

Anti Jam, Anti Interference

The EVO Max series uses advanced flight control modules and algorithms specially designed to counter RFI, EMI, and GPS spoofing. This enables the EVO Max series to fly confidently near power lines, critical structures, and in complex areas.

A-Mesh 1.0

The Industry's First Mesh Networking

EVO Max series features the new A-Mesh system, enabling drone-to-drone autonomous communication, connection, and collaboration.

Enhanced Range

Communication nodes can be placed statically on hills or poles to provide full coverage to an area, or a swarm of drones can provide mobile communication points to extend the coverage of the entire group.
Beyond-Line-of-Sight Applications

With A-Mesh, multiple drones in the vicinity can act as relay points to greatly improve BVLOS operation effectiveness.
Enhanced Anti-Interference

The EVO Max series can communicate seamlessly with other drones in the vicinity, unlike a traditional chain structure. If a single drone fails or exits unexpectedly, the entire system will independently self-organize and continue to relay critical information.
Full-Fleet Control

Multiple drones can be controlled autonomously by 1 pilot or by a group of pilots simultaneously with or without LTE coverage.

EBA SkyLink 3.0

SkyLink 3.0 system of the EVO Max Series comes with 6 antennas, 4 frequency bands, AES-256 encryption, and optional 4G integration to provide users with the most advanced flight capabilities ever in an EVO.

12.4 miles

Image Transmission Distance
<150ms

Latency
1080P@30FPS

Real-Time Image Quality

900MHz/2.4GHz
/5.2GHz/5.8GHz*

Frequency Bands

*While 900 MHz only to FCC regions,
5.2 GHz is applicable only to FCC, CE, and UKCA regions.

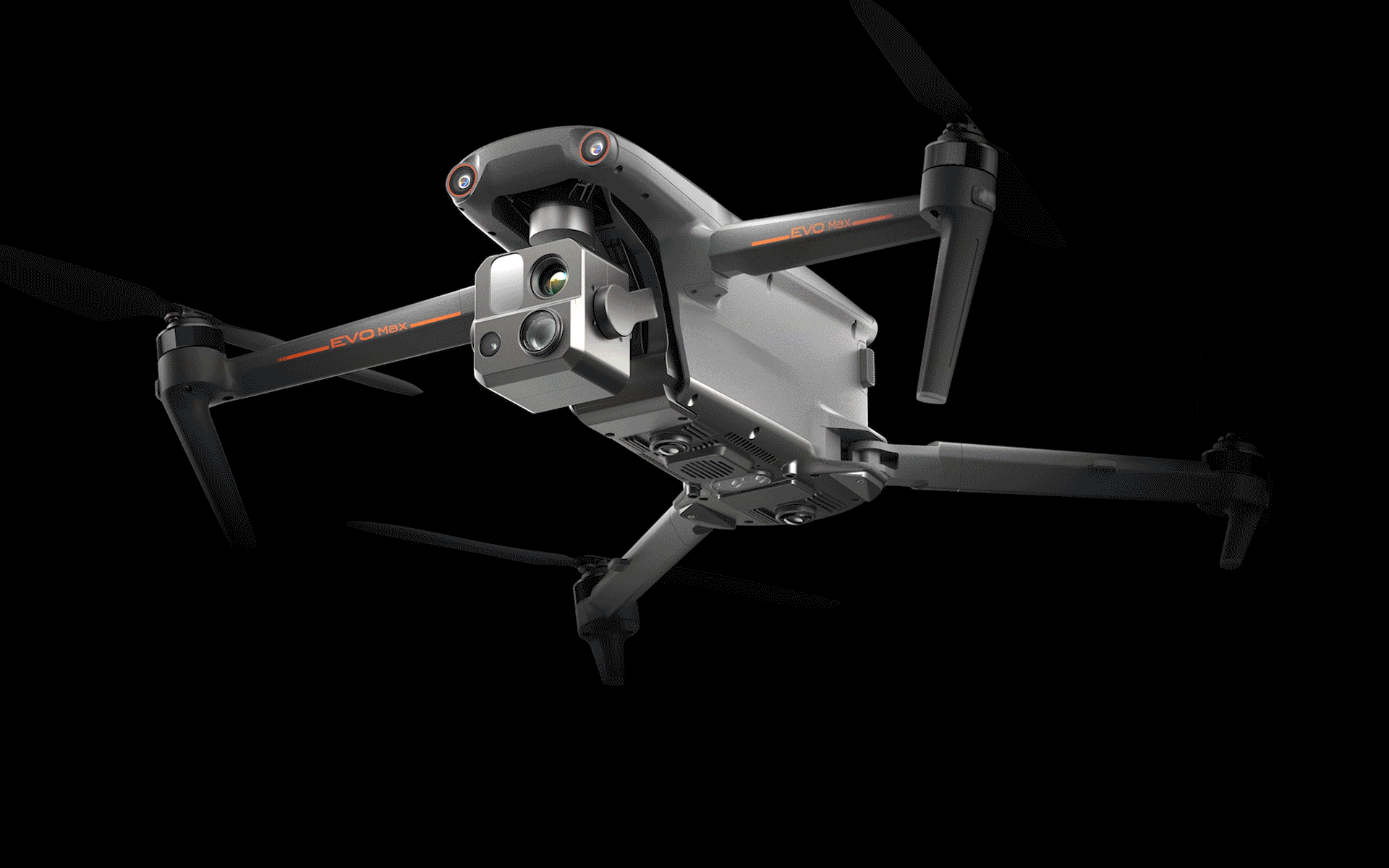

Mission Ready Payload

The payload integrates starlight camera, wide camera, zoom camera, thermal camera, and a laser rangefinder for all data capture needs and critical decision making.

Explore the Night

EVO Max 4N

Starlight Camera

2.3MP
LUX: 0.0001, ISO: 450000
Equivalent: 41.4 mm
Wide Camera

50MP
1/1.28" CMOS
Aperture: f/1.9
DFOV: 85°
Equivalent: 23 mm
Thermal Camera

640×512, Focal Length: 9.1 mm
16x Digital Zoom
Range: -4 ℉ to 1022 ℉
Laser Rangefinder

Measuring Range: 16.4–3737 ft
Measurement Accuracy: ± (1 m + D×0.15%)

Explore the Night

EVO Max 4N

Starlight Camera
Wide Camera
Thermal Camera
Laser Rangefinder

2.3MP
LUX: 0.0001, ISO: 450000
Equivalent: 41.4 mm

50MP
1/1.28" CMOS
Aperture: f/1.9
DFOV: 85°
Equivalent: 23 mm

640×512, Focal Length: 9.1 mm
16x Digital Zoom
Range: -4 ℉ to 1022 ℉

Measuring Range: 16.4–3737 ft
Measurement Accuracy: ± (1 m + D×0.15%)

Chase the Heat

EVO Max 4T

Zoom Camera

48MP
8K 10x Optical Zoom
160x Max. Hybrid Zoom
Aperture: f/2.8–f/4.8
Wide Camera

50MP
1/1.28" CMOS
Aperture: f/1.9
DFOV: 85°
Equivalent: 23 mm
Thermal Camera

640×512
Focal Length: 13 mm
16x Digital Zoom
Range: -4 ℉ to 1022 ℉
Laser Rangefinder

Measuring Range: 16.4–3737 ft
Measurement Accuracy: ± (1 m + D×0.15%)

Chase the Heat

EVO Max 4T

Zoom Camera
Wide Camera
Thermal Camera
Laser Rangefinder

48MP
8K 10x Optical Zoom
160x Max. Hybrid Zoom
Aperture: f/2.8–f/4.8

50MP
1/1.28" CMOS
Aperture: f/1.9
DFOV: 85°
Equivalent: 23 mm

640×512
Focal Length: 13 mm
16x Digital Zoom
Range: -4 ℉ to 1022 ℉

Measurement Accuracy: ± (1 m + D×0.15%)

Chase the Heat and Explore the Night

Chase the Heat

and Explore the Night

Starlight Camera*
Super Zoom*
Supersensitivity
Strong Infrared Perception
Accurate Ranging

Starlight Camera*
Super Zoom*
Supersensitivity
Strong Infrared Perception
Accurate Ranging

Use this new camera to explore the night with targets locked and tracked.

*EVO Max 4N

Supports 8K 10x optical zoom and 160x max. hybrid zoom with clear details on targets up to 1.24 miles away.

*EVO Max 4T

Moonlight Algorithm 2.0 boosts postprocessing and allows you to capture crisp, detailed images in low-light environments.
Video: 4K 30fps, max ISO 64000

Photo: Moonlight mode reduces noise and enhances HDR.

Equipped with 640 x 512 high-resolution thermal imaging camera, 13 mm*/9.1 mm** focal length, and 16x digital zoom.

*EVO Max 4T
**EVO Max 4N

Tap a target to get the coordinates and altitude rapidly from up to 0.75 miles away.

EBA Enterprise App Platform

EBA Enterprise

App Platform

The EBA Enterprise App is built from the ground up for industrial applications and features a brand-new interface for simple, efficient operation. Additional features and semi-autonomous modes maximize the EVO Max series' mission capability.

Smart Features

3D Map Planning*

Plan, create, and execute 3D waypoint missions on a 3D map, and switch map sources as required.

Quick Mission*

Temporary missions can be created while executing other missions, and multiple sub-missions can be stacked for enhanced flexibility.

Mission Reproduction*

The EVO Max series automatically records the camera angles and replicates the mission you just flew.

*This feature will be available in a future update.

3D Map Planning*
Quick Mission*
Mission Reproduction*

Plan, create, and execute 3D waypoint missions on a 3D map, and switch map sources as required.

Temporary missions can be created while executing other missions, and multiple sub-missions can be stacked for enhanced flexibility.

The EVO Max series automatically records the camera angles and replicates the mission you just flew.

Multiple Mission Types

The Enterprise App provides various autonomous and semi autonomous mission planning for public safety, inspection, and surveying.

*This feature will be available in a future update.

Vertical Scan*

Perform vertical surveys for building facades,
open pit walls, and towers.

Corridor Mission*

Supports intuitive and effective corridor mission planning for roads, rivers, pipelines, power lines and other narrow,large-scale terrain.

Polygon Mission

Supports one-click automatic generation of polygon flight areas.

Terrain Follow*

Maintain relatively constant altitude from the
ground for uneven or sloped terrain.

Rectangular Mission

Supports one-click automatic generation of
a rectangular flight area.

Automatic Mission Generation And Data Capture*

Automatically produce routes by adding regional boundary
points through dots or importing KML files.

Waypoint Missions

Users can add waypointsfor flexible, non-structured flight paths.

Polygon Mission

Supports one-click automatic generation of polygon flight areas.

Rectangular Mission

Supports one-click automatic generation of
a rectangular flight area.

Automatic Mission Generation And Data Capture*

Automatically produce routes by adding regional boundary
points through dots or importing KML files.

Data Security

Data* can only be physically accessed via the aircraft locally, and can be encrypted using AES-256 and passwords.

*User and aircraft information, including flight logs, locations, and accounts.

Enhanced Live-View

Multi-channel Projection Screen

Supports simultaneous output of RGB/night vision, infrared, and Map.

AR Scene*

Geo-location data and other aircraft location info detected by ADS-B can overlay on real-time map, which is convenient for you to confirm the drone's location and avoid airborne risks.

Multi-channel
Projection Screen
AR Scene*

Supports simultaneous output of RGB/night vision, infrared, and Map.

Geo-location data and other aircraft location info detected by ADS-B can overlay on real-time map, which is convenient for you to confirm the drone's location and avoid airborne risks.

Operating Environment

IP43

IP Rating
-4 ℉ to 122 ℉

Temperature

Complete Remote Operations System

Used with the EVO Nest, the EVO Max series supports all-weather auto piloting for scenarios such as substations, industrial parks, and rooftops.

EBA SDK

The EBA SDK is open to the world, helping developers and partners reduce software and hardware development costs and jointly create a new industry ecosystem.

Mobile SDK

Open UX SDK (iOS/Android) can directly call up the ready-made interactive interface.

Accessories

EBA Smart Controller V3

Daylight Readable Display: 7.9 inches, 2000nits maximum brightness, 2048*1536 resolution.

SuperDownload: Download footage from drones to mobile devices at a maximum rate of 20 MB/s.

Functional Interface: HDMI ports allow connection to 3rd party displays or monitors.

Ultra-Long Battery Life: Up to 4.5 hours of continuous operation. 2-hr fast charging from empty.

Storage: Built-in 128G storage space allows 3rd party apps and mission media storage.

More+
EVO Nest (optional)

EVO Nest is a base for automatic take off, landing, charging, and mission planning for the EVO series. The Nest is designed for all-weather operation and uses a single-piece protective drum with fewer moving parts to simplify maintenance.

More+
RTK Module (optional)

Provides centimeter-accurate positioning data for mapping and reduces electromagnetic interference for flying near critical structures.
Loudspeaker And Spotlight Combo (optional)

Dimension: 145×116×83mm

Electrical Interface: PSDK Interface

Installation Method: Standard quick release mount

Working Temperature: -10 ℃ to 50 ℃

Speaker: Power @10W; Sound pressure 114db@1 meter; Broadcasting Distance≥300 m

Spotlight: Follow gimbal pitch; Brightness level adjustment; 30° to -90° controllable

Application

Public Safety
Search & Rescue
Inspection
Firefighting

Download Brochure

EVO Max Series

Technical Specifications

Aircraft

EVO Max 4T Weight	3.57 lbs (1620g, battery and gimbal included)
EVO Max 4N Weight	3.62 lbs (1641g, battery and gimbal included)
Max. Takeoff Weight	4.41 lbs (1999 g)
Dimensions	562651147 mm (unfolded, incl. propellers) 318400147 mm (unfolded, excl. propellers) 257145131 mm (folded, excl. propellers)
Diagonal Wheelbase	1.53 ft (466mm)
Max Ascent Speed	8m/s
Max Descent Speed	6m/s
Max Horizontal Speed (windless near sea level)	23m/s *Maximum speed in Ludicrous Mode is 19m/s when operating in EU regions.
Max Takeoff Altitude	13,124ft (4000m)
Max Flight Time (windless)	42 mins
Max Hovering Time (windless)	38 mins
Max Wind Resistance	27mph* *Takeoff and landing can withstand wind speeds up to 27 mph (12 m/s).
IP Rating	IP43
Max Tilt Angle	35°
Max Angular Velocity	Pitch: 300°/s; Yaw: 120°/s
Operating Temperature	-4°F to 122°F (-20℃ to 50℃)
Internal Storage	128GB internal storage, with 64GB of available space* (Remaining available space will vary with different firmware versions)
Operating Frequency	2.4GHz/5.8GHz 5.2GHz (only applicable for FCC, CE, and UKCA regions). 900MHz (only applicable for FCC regions).
GNSS	GPS+Galileo+BeiDou+GLONASS
Transmitter Power (EIRP)	2.4GHz: <30dBm (FCC), <20dBm(CE/SRRC/MIC) 5.8GHz: <27dBm (FCC/SRRC), <14dBm (CE) 5.15-5.25GHz: <23dBm (FCC/CE) 902-928MHz: <30dBm (FCC) 5.65-5.755GHz: <27dBm (MIC)
Hovering Accuracy	Vertically: ±0.1 m (when vision systems working normally); ±0.5 m (when GNSS working normally); Horizontally: ±0.3 m (when vision systems working normally); ±0.5 m (when GNSS working normally);
Wi-Fi Protocol	802.11a/b/g/n/ac/ax Support 2 x 2 MIMO Wi-Fi
Wi-Fi Operating Frequency	2.400 - 2.4835 GHz; 5.150 - 5.250GHz (CE/FCC/MIC); 5.725 ‒ 5.850 GHz*(Except MIC）
Wi-Fi Transmitter Power (EIRP)	2.400 - 2.4835 GHz FCC:＜30dBm; CE/SRRC/MIC:＜20dBm 5.150 - 5.250GHz FCC/CE/MIC<22dBm 5.725 ‒ 5.850 GHz FCC/SRRC: ＜21dBm CE: ＜14dBm

Gimbal

Mechanical Range	Pitch: -135° to 45° Yaw: -45° to 45° Roll: -45° to 45°
Controllable Range	-90° to 30°
Stable system	3-axis mechanical gimbal (pitch, yaw, roll)
Max Control Speed (pitch)	200º/s
Angular Vibration Range	<0.005°

EVO Max 4T Zoom Camera (Telephoto)

Sensor	1/2" CMOS, Effective pixels: 48M
Lens	Focal length: 11.8-43.3mm (35mm, equivalent: 64-234mm) Aperture: f/2.8-f/4.8 Focusing distance: 5m ~ ∞
Exposure Compensation	±3EV 0.3EV/step
ISO Range	Normal Mode： Auto: ISO100 ~ ISO6400 Manual: Photo: ISO100 ~ ISO12800 Video: ISO100 ~ ISO6400
Shutter Speed	Photo: 8s ~ 1/8000s Video: 1s ~ 1/8000s
Max Photo Size	8000×6000
Max Video Resolution	4000x3000

EVO Max 4T Thermal Camera

Thermal Imager	Uncooled VOx Microbolometer
Lens	FOV: 42° Focal length: 13mm Aperture: f/1.2 Focusing Distance: 6m ~ ∞
Infrared Temperature Measurement Accuracy	±3℃ or reading ±3% (using the larger value) @ambient temperature range from -4℉ to 140℉ (-20℃~60℃)
Video Resolution	640×512@25FPS
Photo Size	640×512
Pixel Pitch	12 um
Temperature Measurement Method	Center measurement, pot measurement, rectangular measurement
Temperature Measurement Range	-4℉ to 302℉, 32℉ to 1022℉ (-20°C to 150°C, 0 to 550°C)
Temperature Alert	High and low temperature alarm thresholds, reporting coordinates and temperature values
Palette	White Hot/Black Hot/Searing/Rainbow/Grey/Ironbow/Cold and Hot

EVO Max 4N Starlight Camera

Sensor	Effective Pixels: 2.3M
Lens	Focal Length: 35mm (equivalent 41.4mm) FOV：52° Zoom Range: 1-8x, supports linkage zoom
ISO Range	Auto: ISO100-ISO450000 Super Sensitive Mode: Auto ISO100-ISO450000
Camera Modes	Single shot (default)
Photo Format	JPG
Photo Resolution	1920×1200
Video Format	MP4
Video Resolution	20Mbps (1920×1200 P30)
HDR Video	Auto
Video Output	Super Sensitive Mode: 1920×1200 P30

EVO Max 4N Thermal Camera

Sensor	Uncooled VOx Microbolometer
Lens	FOV：61° Focal length: 9.1mm Aperture: f/1.0 Focusing Distance: 2.2m ~ ∞
Infrared Temperature Measurement Accuracy	±3℃ or ±3% of reading (using the larger value) @ ambient temperature range from -4℉ to 140℉ (-20℃-60℃)
Video Resolution	640×512@30FPS
Photo Size	640×512
Pixel Pitch	12um
Temperature Measurement Method	Center measurement, pot measurement, rectangular measurement
Temperature Measurement Range	-4℉ to 302℉, 32℉ to 1022℉ (-20°C to 150°C, 0 to 550°C)
Temperature Alert	High and low temperature alarm thresholds, reporting coordinates and temperature values
Palette	White Hot/Black Hot/Searing/Rainbow/Grey/Ironbow/Cold and Hot

Wide Camera

Sensor	1/1.28 CMOS, Effective pixels: 50M
Lens	FOV: 85° Focal length: 4.5 mm (equivalent: 23 mm) Aperture: f/1.9 AF motor: PDAF focus
Exposure Compensation	±3EV 0.3EV/step
ISO Range	Photo: ISO100~ISO6400 Video: ISO100~ISO64000 (Night scene mode: up to ISO64000)
Shutter Speed	Photo: 8s ~ 1/8000s Video: 1s ~ 1/8000s
Max. Video Resolution	4000×3000
Photo Size	4096*3072

Laser Rangefinder

Measurement Accuracy	± (1 m + D×0.15%) D is the distance to a vertical surface
Measuring Range	5m to 1.2km

Image Transmission

Operating Frequency	2.4G/5.8G/900MHz* *900MHz is only applicable for FCC regions.
Max Transmission Distance (unobstructed, free of interference)	12.4 miles/20km (FCC), 4.9 miles/8km (CE)
Independent Networking	EBA Smart Controller V3
Transmitter Power (EIRP)	2.4GHz: <28dBm (FCC), <20dBm (CE/SRRC/MIC) 5.8GHz: <28dBm (FCC/SRRC), <14dBm (CE) 5.15-5.25GHz: < 23dBm(FCC/CE) 902-928MHz: <30dBm (FCC) 5.65-5.755GHz: <27dBm (MIC)

Millimeter-wave Radar Sensing System

Frequency	60GHz/24GHz* *Please fly safely and comply with your local laws and regulations to use 60GHz.
Sensing Range	60GHz Radar: Upward: 0.98-787.4in (0.3-20m) Downward: 5.9-3149.6in (0.15-80m) Forward and Backward: 0.98-98.43ft (0.3-50m) 24GHz Radar: Downward: 2.62-39.4ft (0.8-12m)
FOV	Horizontal (6dB): ±60°/±22° (24G/60G) Vertical (6dB): ±30°/±20° (24G/60G)
Operating Environment	The 60GHz millimeter-wave radar sensing system supports all-weather obstacle avoidance for glass, water, wires, buildings, and trees. Its obstacle avoidance distance varies with the obstacle's ability to reflect electromagnetic waves and its surface size. The 24Ghz millimeter-wave radar supports downward sensing, and its sensing range varies by the ground material. For example, the sensing range of cement ground is 12 meters, and the sensing range of grass with a thickness of more than 3cm is less than 6 meters.

Visual Sensing System

Obstacle Sensing Range	Forward: 19.7-1220.5in (0.5-31m) Backward: 19.7-984.3in (0.5-25m) Sideward: 19.7-1023.6in (0.5-26m) Upward: 0.66-85.3ft (0.2-26m) Downward: 0.98-75.5ft (0.3-23m)
FOV	Forward/Backward Sensor: 60°(H), 80°(V) Upward/Downward Sensor: 180°(sideward), 120°(forward & backward)
Operating Environment	Forward, Backward, Sideward, Upward: The surface has rich texture, under sufficient lighting environment (>15 lux, normal indoor fluorescent lighting environment) Downward: The surface is a diffuse material with a reflectivity >20% (walls, trees, humans, etc.), under sufficient lighting environment (>15 lux, normal indoor fluorescent lighting environment)

Radar and Visual Sensing Systems

Sensing Range	Forward & Backward: 11.8-1968.5in (0.3-50m) Sideward: 19.7-1023.6in (0.5-26m) Upward: 0.66-85.3ft (0.2-26m) Downward: 0.49-262.5ft (0.15-80m) (60Ghz radar)
FOV	Forward/Backward Sensor: 80°(H), 120°(V) Upward/Downward Sensor: 180°(sideward), 120°(forward & backward)
Operating Environment	Forward, Backward, Upward, Downward: supports all-weather obstacle avoidance for glass, water, twigs, buildings and high voltage lines. At least one of the 2 conditions should be met: sufficient lighting or the obstacle has strong reflection ability to electromagnetic waves. Sideward: The surface has rich texture, under sufficient lighting environment (>15 lux, normal indoor fluorescent lighting environment)

EBA Smart Controller V3

Screen	7.9 inch, 2000nits max. brightness, 2048*1536 resolution
Battery	Capacity: 5800mAh Battery Type: Intelligent Lithium Ion Battery Voltage: 11.55V Energy: 67Wh Charing time: 120mins
Operating Time	2.5 hours (Max. brightness) 4.5 hours (50% brightness)
Max Transmission Distance (without interference)	12.4 miles/20km (FCC), 4.9 miles/8km (CE)
IP Rating	IP43
Storage	128G
GNSS	GPS+GLONASS+Galileo+Beidou
Operating Temperature	-4°F to 104°F (-20℃ to 40℃)
Wi-Fi Protocol	WiFi Direct, Wi-Fi Display, 802.11a/b/g/n/ac Support 2 x 2 MIMO Wi-Fi
Operating Frequency	2.400 - 2.4835 GHz; 5.150 - 5.250GHz(MIC only); 5.725 ‒ 5.850 GHz(Except MIC）
Transmitter Power (EIRP)	2.400 - 2.4835 GHz FCC:＜23dBm; CE/SRRC/MIC:＜20dBm 5.150 - 5.250GHz MIC:＜17dBm 5.725 ‒ 5.850 GHz FCC/SRRC:＜22dBm CE:＜14dBm

Aircraft Battery

Capacity	8070mAh
Voltage	14.88V
Battery Type	LiPo 4S
Energy	120wh
Net Weight	1.15 lbs (520g)
Charging Temperature	-4° F to 113° F (-20ºC to 45ºC) When the temperature is lower than 41° F (5° C), the selfheating function will be automatically activated. There should be at least around 10% of the remaining power for heating.)
Hot Swappable	Supported

EVO Max Series

EVO Max Series

No Blind Spots

Anti Jam Anti Interference

Reach New Frontiers

No Blind Spots

Ultimate Obstacle Avoidance

Anti Jam, Anti Interference

Anti Jam, Anti Interference

A-Mesh 1.0

The Industry's First Mesh Networking

Enhanced Range

Beyond-Line-of-Sight Applications

Enhanced Anti-Interference

Full-Fleet Control

EBA SkyLink 3.0

12.4 miles

<150ms

1080P@30FPS

Mission Ready Payload

Explore the Night

Starlight Camera

Wide Camera

Thermal Camera

Laser Rangefinder

Explore the Night

Chase the Heat

Zoom Camera

Wide Camera

Thermal Camera

Laser Rangefinder

Chase the Heat

Chase the Heat and Explore the Night

Chase the Heat

and Explore the Night

EBA Enterprise App Platform

EBA Enterprise

App Platform

Smart Features

Smart Features

3D Map Planning*

Quick Mission*

Mission Reproduction*

Multiple Mission Types

Multiple Mission Types

Vertical Scan*

Corridor Mission*

Polygon Mission

Terrain Follow*

Rectangular Mission

Automatic Mission Generation And Data Capture*

Waypoint Missions

Polygon Mission

Rectangular Mission

Automatic Mission Generation And Data Capture*

Data Security

Data Security

Enhanced Live-View

Enhanced Live-View

Multi-channel Projection Screen

AR Scene*

Operating Environment

IP43

-4 ℉ to 122 ℉

Complete Remote Operations System

EBA SDK

Mobile SDK

Accessories

EBA Smart Controller V3

EVO Nest (optional)

RTK Module (optional)

Loudspeaker And Spotlight Combo (optional)

Application

EVO Max Series

Contact us now to find out more about the EVO Max Series

Anti Jam
Anti Interference

Contact us now to find out more
about the EVO Max Series
